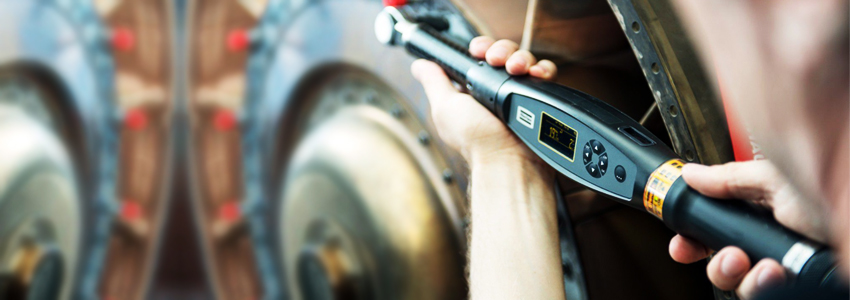

DIGITAL TORQUE WRENCHES
Clockwise ± 2 %, anticlockwise ± 3 %.
Robust torque wrench with shock-resistant casing, 2-component handle, large display and
reversible ratchet. Easy operation using large input buttons. Visual and acoustic signal indicates
achievement of the set torque visually and audibly. Two working modes; selectable between
peak value display and following display. The working memory can save up to 50 tightening
events, the display can be switched between Nm − in.lb − ft.lb.
Size 12 – Captive push-through ratchet with ejector. Accuracy class in the calibrated
range ±3 %. Any point of application of force. Irrespective of where
the wrench is held, the measurement always remains accurate.
Size 30 – 340 – Sturdy plug-in ratchet with change-over wheel.
Torque control; controlled tightening of screws in
a single operation or for small batch production.
Measurement of torque and angle of rotation.
Measurement of breakaway torque of an existing screw fastening.
The measured breakaway torque value closely matches the
The following operating modes are available:
Track or Peak mode.
"QuickTest" − screw tightening to the specified torque or rotational angle.
Screw tightening to the specified values and tolerances.
Breakaway torque − closely matches the existing torque.
Acoustic and visual warning signals or reaching or exceeding the set value. Stores up to 900
values. Operating life approx. 40 h. Angular measurement without any need for a reference arm.
Supplied with :
With plastic case and 4 batteries (1.5 V Mignon / AA / LR6), with data transmission cable,
and software, reversible precision ratchet.
